| Place of Origin | Zhejiang haiyan |
| Brand Name | HT |
| Certification | CE/CCC |
| Model Number | RVB |

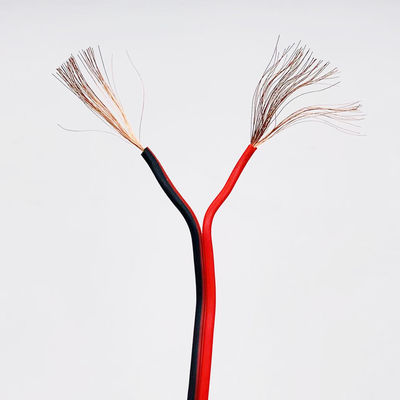

LED lighting connecting wire dual color 1007 red black electronic wire horn wire terminal wire
Product Description
n Application: used for speaker ranges,home theater or audio system,used for connecting power amplifier and broadcasting systems,for transmitting the audio signals amplified by the amplifier
n Structure: 8AWG,10AWG, 12AWG, 14AWG, 16AWG, 18AWG,20AWG or customized
n Conductor Material: OFC/TC/BC/CCA/TCCA/CCS
n Rated voltage: 85V
n Jacket: Transparent PVC;Black&Red PVC,White PVC or customized
n Packing:Box/Coil/Drum/Paper reel/Plastic reel/Wooden reel
| Number | Core number × nominal section mm² |
Conductor structureNO./mm |
Insulation thickness rating Mm |
Average outer diameter upper limit MM |
20℃Maximum conductor resistance MΩ/km |
70℃Minimum insulation resistance MΩ/km |
| 1 | 2×0.50 | 28/0.15 | 0.80 | 6.00 | 39.00 | 0.016 |
| 2 | 2×0.75 | 42/0.15 | 0.80 | 6.20 | 26.00 | 0.014 |
| 3 | 2×1.00 | 32/0.20 | 0.80 | 6.50 | 19.50 | 0.012 |
| 4 | 2×1.50 | 48/0.20 | 0.80 | 7.10 | 13.30 | 0.010 |
| 5 | 2×2.50 | 49/0.25 | 0.80 | 8.10 | 7.98 | 0.009 |
| 6 | 2×4.00 | 56/0.30 | 0.80 | 9.30 | 4.95 | 0.007 |
|
|
