Product Details:
|
| Certification: | CCC/CE | Color: | As Your Request |
|---|---|---|---|
| Conductor: | Copper Core | Insulation: | PVC Insulation Cable |
| Material: | PVC Copper | Size: | As Your Request |
| Jacket: | PVC/PE | Application: | Electrical Equipment |
| Conductor Type: | Stranded | ||
| High Light: | Anti Insulation Audio Speaker Wire,8AWG Audio Speaker Wire,Alkali Resistant Speaker Wire Red Black |
||

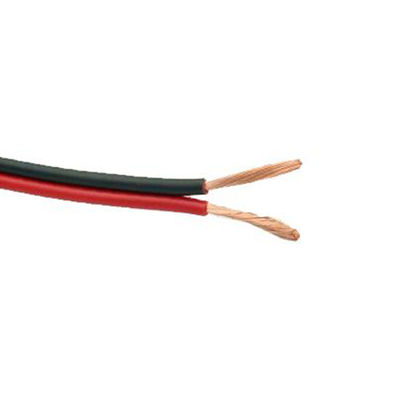

High quality pure copper clad aluminum 2 * 0.75mm ² Red black wire PVC insulated parallel wire
Product Description
n Application: used for speaker ranges,home theater or audio system,used for connecting power amplifier and broadcasting systems,for transmitting the audio signals amplified by the amplifier
n Structure: 8AWG, 10AWG, 12AWG, 14AWG, 16AWG, 18AWG, 20AWG or customized
n Conductor Material: OFC/TC/BC/CCA/TCCA/CCS
n Rated voltage: 85V
n Jacket: Transparent PVC;Black&Red PVC,White PVC or customized
n Packing:Box/Coil/Drum/Paper reel/Plastic reel/Wooden reel
| Number | Core number × nominal section mm² |
Conductor structureNO./mm |
Insulation thickness rating Mm |
Average outer diameter upper limit MM |
20℃Maximum conductor resistance MΩ/km |
70℃Minimum insulation resistance MΩ/km |
| 1 | 2×0.50 | 28/0.15 | 0.80 | 6.00 | 39.00 | 0.016 |
| 2 | 2×0.75 | 42/0.15 | 0.80 | 6.20 | 26.00 | 0.014 |
| 3 | 2×1.00 | 32/0.20 | 0.80 | 6.50 | 19.50 | 0.012 |
| 4 | 2×1.50 | 48/0.20 | 0.80 | 7.10 | 13.30 | 0.010 |
| 5 | 2×2.50 | 49/0.25 | 0.80 | 8.10 | 7.98 | 0.009 |
| 6 | 2×4.00 | 56/0.30 | 0.80 | 9.30 | 4.95 | 0.007 |
|
|
Company introduction
We are a wire factory located in Zhejiang Haiyan, China.
We have professional, high quality machines and testing equipment. Main business Low voltage power cables, civil wires, audio cables, fire alarm cables,Control cable and other more than 30 series of products. The company's service purpose is Integrity-based, customer satisfaction for the principle. We hope that in the near future To work with you.
