Audio Speaker Wire
>
|
| Place of Origin | Zhejiang haiyan |
| Brand Name | HT |
| Certification | CE/CCC |
| Model Number | RVB |

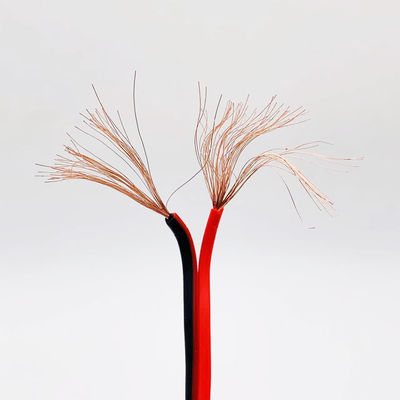

Pure copper 2-core red black wire rvb1.5/2.5square LED display black and red parallel wire monitoring power wire
Product Description
n Application: used for speaker ranges,home theater or audio system,used for connecting power amplifier and broadcasting systems,for transmitting the audio signals amplified by the amplifier
n Structure: 8AWG,10AWG, 12AWG, 14AWG, 16AWG, 18AWG,20AWG or customized
n Conductor Material: OFC/TC/BC/CCA/TCCA/CCS
n Rated voltage: 85V
n Jacket: Transparent PVC;Black&Red PVC,White PVC or customized
n Packing:Box/Coil/Drum/Paper reel/Plastic reel/Wooden reel
| Number | Core number × nominal section mm² |
Conductor structureNO./mm |
Insulation thickness rating Mm |
Average outer diameter upper limit MM |
20℃Maximum conductor resistance MΩ/km |
70℃Minimum insulation resistance MΩ/km |
| 1 | 2×0.50 | 28/0.15 | 0.80 | 6.00 | 39.00 | 0.016 |
| 2 | 2×0.75 | 42/0.15 | 0.80 | 6.20 | 26.00 | 0.014 |
| 3 | 2×1.00 | 32/0.20 | 0.80 | 6.50 | 19.50 | 0.012 |
| 4 | 2×1.50 | 48/0.20 | 0.80 | 7.10 | 13.30 | 0.010 |
| 5 | 2×2.50 | 49/0.25 | 0.80 | 8.10 | 7.98 | 0.009 |
| 6 | 2×4.00 | 56/0.30 | 0.80 | 9.30 | 4.95 | 0.007 |
|
|
Company introduction
We are a wire factory located in Zhejiang Haiyan, China.
We have professional, high quality machines and testing equipment. Main business Low voltage power cables, civil wires, audio cables, fire alarm cables,Control cable and other more than 30 series of products. The company's service purpose is Integrity-based, customer satisfaction for the principle. We hope that in the near future To work with you.
