Product Details:
|
| Certification: | CCC/CE | Color: | As Your Request |
|---|---|---|---|
| Conductor: | Copper Core | Insulation: | PVC Insulation Cable |
| Material: | PVC Copper | Size: | As Your Request |
| Jacket: | PVC/PE | Application: | Electrical Equipment |
| Conductor Type: | Stranded | ||
| High Light: | Anti Flaming Oxygen Free Speaker Cable,Oilproof Oxygen Free Speaker Cable,Flame Retardant Speaker Power Wire |
||

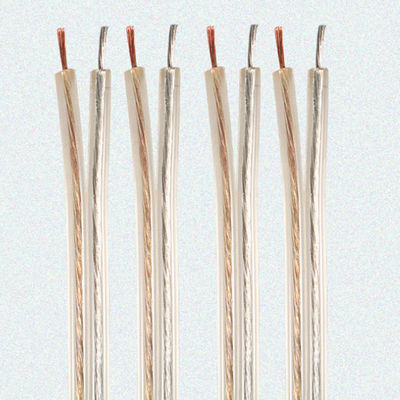

Manufacturer's direct selling transparent horn wire 2 * 4.0mm ² Environmental protection PVC insulated sound cable
| Number | Core number × nominal section mm² |
Conductor structureNO./mm |
Insulation thickness rating Mm |
Average outer diameter upper limit MM |
20℃Maximum conductor resistance MΩ/km |
70℃Minimum insulation resistance MΩ/km |
| 1 | 2×0.50 | 28/0.15 | 0.80 | 6.00 | 39.00 | 0.016 |
| 2 | 2×0.75 | 42/0.15 | 0.80 | 6.20 | 26.00 | 0.014 |
| 3 | 2×1.00 | 32/0.20 | 0.80 | 6.50 | 19.50 | 0.012 |
| 4 | 2×1.50 | 48/0.20 | 0.80 | 7.10 | 13.30 | 0.010 |
| 5 | 2×2.50 | 49/0.25 | 0.80 | 8.10 | 7.98 | 0.009 |
| 6 | 2×4.00 | 56/0.30 | 0.80 | 9.30 | 4.95 | 0.007 |
|
|
Company introduction
We are a wire factory located in Zhejiang Haiyan, China.
We have professional, high quality machines and testing equipment. Main business Low voltage power cables, civil wires, audio cables, fire alarm cables,Control cable and other more than 30 series of products. The company's service purpose is Integrity-based, customer satisfaction for the principle. We hope that in the near future To work with you.
Contact Person: whw
Tel: +86 18057370507
