Product Details:
|
| Certification: | CCC/CE | Color: | As Your Request |
|---|---|---|---|
| Conductor: | Copper Core | Insulation: | PVC Insulation Cable |
| Material: | PVC Copper | Size: | As Your Request |
| Jacket: | PVC/PE | Application: | Electrical Equipment |
| Conductor Type: | Stranded | ||
| High Light: | 2Core Audio Speaker Wire,Flameproof Audio Speaker Wire,Mildew Resistant 2 Core Speaker Wire |
||

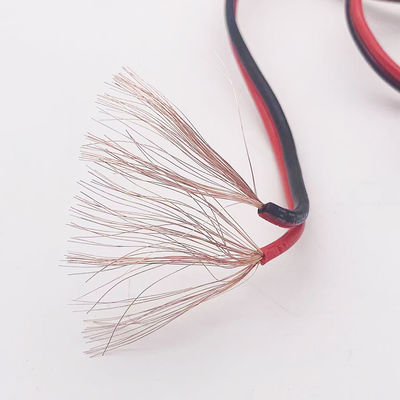

High quality red and black wire 2 * 0.75mm ² Horn wire pure copper-clad steel sound wire
| Number | Core number × nominal section mm² |
Conductor structureNO./mm |
Insulation thickness rating Mm |
Average outer diameter upper limit MM |
20℃Maximum conductor resistance MΩ/km |
70℃Minimum insulation resistance MΩ/km |
| 1 | 2×0.50 | 28/0.15 | 0.80 | 6.00 | 39.00 | 0.016 |
| 2 | 2×0.75 | 42/0.15 | 0.80 | 6.20 | 26.00 | 0.014 |
| 3 | 2×1.00 | 32/0.20 | 0.80 | 6.50 | 19.50 | 0.012 |
| 4 | 2×1.50 | 48/0.20 | 0.80 | 7.10 | 13.30 | 0.010 |
| 5 | 2×2.50 | 49/0.25 | 0.80 | 8.10 | 7.98 | 0.009 |
| 6 | 2×4.00 | 56/0.30 | 0.80 | 9.30 | 4.95 | 0.007 |
|
|
Company introduction
We are a wire factory located in Zhejiang Haiyan, China.
We have professional, high quality machines and testing equipment. Main business Low voltage power cables, civil wires, audio cables, fire alarm cables,Control cable and other more than 30 series of products. The company's service purpose is Integrity-based, customer satisfaction for the principle. We hope that in the near future To work with you.
