Product Details:
|
| Certification: | CCC/CE | Color: | As Your Request |
|---|---|---|---|
| Conductor: | Copper Core | Insulation: | PVC Insulation Cable |
| Material: | PVC Copper | Size: | As Your Request |
| Jacket: | PVC/PE | Application: | Electrical Equipment |
| Conductor Type: | Stranded | ||
| High Light: | Moistureproof Oxygen Free Copper Speaker Cable,Annealed Oxygen Free Copper Speaker Cable,Alkali Resistant Speaker Copper Cable |
||
Manufacturer direct selling, high quality, customizable 2 * 6.0mm ² Audio cable and horn cable

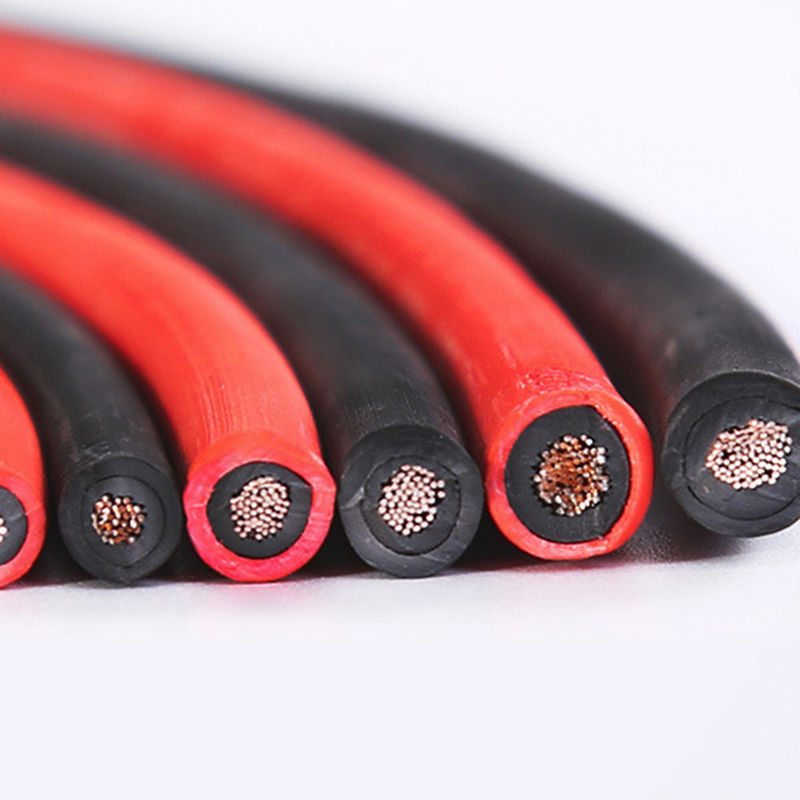

Speaker wire is used to make the electrical connection between loudspeakers and audio amplifiers. Modern speaker wire consists of two or more electrical conductors individually insulated by plastic (such as PVC, PE or Teflon) or, less commonly, rubber.
* 2 / 4 / 8 Cores with High Strand OFC Oxygen Free Copper Or Annealed Tinned Copper Conductors
* Both Unshielded and Shielded Types Are Available
* Can Be Round Type or Parallel Flat Type
* CL2, CL2R, CL3 and CL3R Rated Transparent PVC, Non-Transparent PVC Or LSZH Jacket for In Wall Applications
* PE Jacket for Outdoor Application, With Gel Filled Type or With Water Blocking Tape , UV and Water Resistant
* Tangle Free Reelex and Easy Pull Box Packing Or As Required
* Excellent performance, sound quality ,ffor professional home theatre speaker and audio connections
| Number | Core number × nominal section mm² |
Conductor structureNO./mm |
Insulation thickness rating Mm |
Average outer diameter upper limit MM |
20℃Maximum conductor resistance MΩ/km |
70℃Minimum insulation resistance MΩ/km |
| 1 | 2×0.50 | 28/0.15 | 0.80 | 6.00 | 39.00 | 0.016 |
| 2 | 2×0.75 | 42/0.15 | 0.80 | 6.20 | 26.00 | 0.014 |
| 3 | 2×1.00 | 32/0.20 | 0.80 | 6.50 | 19.50 | 0.012 |
| 4 | 2×1.50 | 48/0.20 | 0.80 | 7.10 | 13.30 | 0.010 |
| 5 | 2×2.50 | 49/0.25 | 0.80 | 8.10 | 7.98 | 0.009 |
| 6 | 2×4.00 | 56/0.30 | 0.80 | 9.30 | 4.95 | 0.007 |
|
|
Company introduction
We are a wire factory located in Zhejiang Haiyan, China.
We have professional, high quality machines and testing equipment. Main business Low voltage power cables, civil wires, audio cables, fire alarm cables,Control cable and other more than 30 series of products. The company's service purpose is Integrity-based, customer satisfaction for the principle. We hope that in the near future To work with you.
