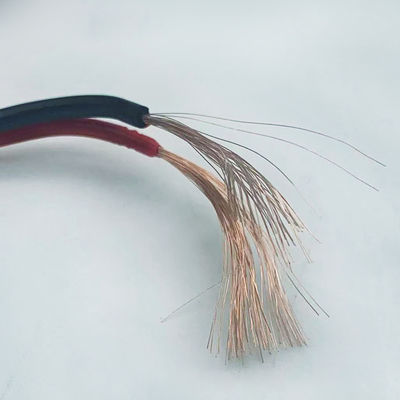

High quality red and black wire 2 * 0.2mm ² Horn wire pure copper-clad steel sound wire
Aplication:
* Twin Flat Speaker Cable is for the connection of loudspeaker, home theater or audio system.
* For connecting power amplifier and broadcasting systems, transmitting the audio signals amplified by the amplifier.
Specification :
Nominal Voltage: 220V
Temperature Range: -10°C to + 80°C
Conductor0.35sqmm to 4.0sqmm, bare copper ,tinned copper or CCA materialInsulationPE or PVC InsulationColortransparent, red/black,
white and any colorConductorOverall DiameterConductor Square Meter10 AWG5.5+5.5mm4.0mm212 AWG4.5+4.5mm2.5mm214 AWG4.0+4.0mm2.0mm2
16 AWG3.5+3.5mm1.5mm218 AWG3.0+3.0mm1.0mm220 AWG2.5+2.5mm0.75mm222 AWG2.0+2.0mm0.50mm2
Number | Core number × nominal section mm² |
Conductor structureNO./mm |
Insulation thickness rating Mm |
Average outer diameter upper limit MM |
20℃Maximum conductor resistance MΩ/km |
70℃Minimum insulation resistance MΩ/km |
1 | 2×0.50 | 28/0.15 | 0.80 | 6.00 | 39.00 | 0.016 |
2 | 2×0.75 | 42/0.15 | 0.80 | 6.20 | 26.00 | 0.014 |
3 | 2×1.00 | 32/0.20 | 0.80 | 6.50 | 19.50 | 0.012 |
4 | 2×1.50 | 48/0.20 | 0.80 | 7.10 | 13.30 | 0.010 |
5 | 2×2.50 | 49/0.25 | 0.80 | 8.10 | 7.98 | 0.009 |
6 | 2×4.00 | 56/0.30 | 0.80 | 9.30 | 4.95 | 0.007 |
|
Company introduction
We are a wire factory located in Zhejiang Haiyan, China.
We have professional, high quality machines and testing equipment. Main business Low voltage power cables, civil wires, audio cables, fire alarm cables,Control cable and other more than 30 series of products. The company's service purpose is Integrity-based, customer satisfaction for the principle. We hope that in the near future To work with you.
