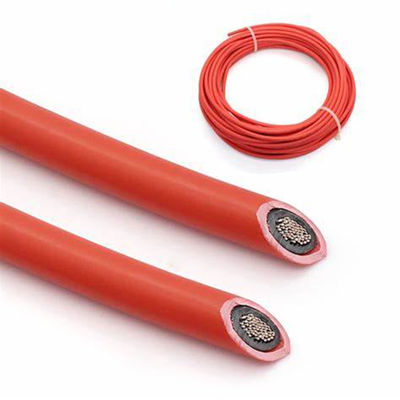

Flameproof Power Solar PV Cable Anti Insulation Alkali Resistant
  • Flameproof Power Solar PV Cable Anti Insulation Alkali Resistant
  • Flameproof Power Solar PV Cable Anti Insulation Alkali Resistant
  • Flameproof Power Solar PV Cable Anti Insulation Alkali Resistant

Flameproof Power Solar PV Cable Anti Insulation Alkali Resistant

Place of Origin Zhejiang haiyan
Brand Name HT
Certification CE/CCC
Model Number PVcable
Product Details
As Your Request
Copper Core
PVC Insulation Cable
PVC Copper
As Your Request
Electrical Equipment
Conductor Type:
High Light:

Flameproof Solar PV Cable


Anti Insulation Solar PV Cable


Alkali Resistant Solar Power Cables

Payment & Shipping Terms
Minimum Order Quantity
Consult customer service
Packaging Details
Cartons and woven bags
Delivery Time
20~30 work days
Payment Terms
T/T, L/C
Product Description

UV resistant high-quality green environmental protection crosslinked polyethylene solar photovoltaic cable




Black & Red flexible tinned copper with Halogen free Copolymer Insulation and a UV stable Halogen free Copolymer sheath.

Solar cables should also be resistant to impact, abrasion and tear, its minimum bending radius should be not more than 4 times of overall diameter. It should be characterized by its safe pulling force--50 N/sqmm.The cable’s insulation must withstand thermal and mechanical loads, and accordingly plastics been cross-linked are increasingly used today, they not only withstand severe weather conditions and are suitable for outdoor usage, but also are salt water resistant, and due to the halogen-free flame resistant cross-linked jacket material they can be used indoors in dry conditions.


Envisaging the above information solar energy and its main source solar cables are very safe, durable, resistant to environmental impacts and very reliable. What is more important they will do no harm to the environment and there is no fear that there will be the power cut off or some other problems, what the majority of the population is facing during power provision problems. No matter what, houses or offices will have a guaranteed current and they will not be interrupted during working, no time is wasted, not much money is spent and no hazardous fumes are emitted during its working causing so much damage to heat and to nature.


  • Inner Conductor: Flexible Tinned Copper Wire
  • Dielectric: LSZH Halogen Free Copolymer
  • LSZH Halogen Free Copolymer (UV Resistant)
  • Colour: BLACK / RED
  • Storage/Operating Temperature: -40°C to +90°C
  • Minimum Installation Temperature: -5°C



Name PV Cable
The product description Widely used in indoor and outdoor solar installations, electrical installation, indoor and outdoor, explosion-prone areas, factories, industrial and agricultural industries.
Product features Low smoke without halogen, good cold, ultraviolet, ozone - resistant and weather - resistant.
Flame retardant, cutting resistance and penetration resistance.
Cable protection level Ⅱ level.
With 150 ℃ photovoltaic cable radiation as insulation materials, halogen free flame retardant is halogen-free, non-toxic modified polyethylene thin hengjing resin as the main raw material, add halogen-free, non-toxic, flame retardant, heat stabilizer, eliminate smoke agent, preservative, such as fertilizer, does not contain halogen, heavy metals, phosphorus.
It conforms to ROHS, and the insulation resistance is small after immersion.
Electrical 1. The dc resistance: the finished cable at 20 ℃ conductive wire core dc resistance is not greater than 5.09 Ω/km
2. The insulation resistance: the finished insulation resistance of cable at 20 ℃ should not less than 1014 Ω. Cm, finished cable insulation resistance at 90 ℃ is not less than 1011 Ω. Cm
3. The sheath surface resistance: resistance of the finished cable sheath surface should be not less than 109 Ω.
Cable structure Conductor: tinned copper wire 2.5, 4, 6, 10, 16 mm ^ 2 PV1 - F
18, 16 and 14, 12, 10, 8, 6, 4, 2 mm ^ 2 PV wire
Insulation: > 0.5mm thick with low smoke and halogen material, and meet the specified limit of the customer.
Sheath: low smoke and halogen free material thickness > 0.5mm.
Detailed parameters Ambient temperature: - 40 ℃ ~ + 90 ℃
The highest temperature of conductor: 120 ℃ (allow 5 s in short circuit temperature 200 ℃)
Limited voltage: AC0.6/1kv dc1.8kv.

Flameproof Power Solar PV Cable Anti Insulation Alkali Resistant 0Flameproof Power Solar PV Cable Anti Insulation Alkali Resistant 1

Flameproof Power Solar PV Cable Anti Insulation Alkali Resistant 2Flameproof Power Solar PV Cable Anti Insulation Alkali Resistant 3

Flameproof Power Solar PV Cable Anti Insulation Alkali Resistant 4Flameproof Power Solar PV Cable Anti Insulation Alkali Resistant 5


Company introduction
We are a wire factory located in Zhejiang Haiyan, China.
We have professional, high quality machines and testing equipment. Main business Low voltage power cables, civil wires, audio cables, fire alarm cables,Control cable and other more than 30 series of products. The company's service purpose is Integrity-based, customer satisfaction for the principle. We hope that in the near future To work with you.

1. Q: Are you a factory or trading company?
A: We’re a factory locates in Zhejiang Province, which integrates R&D, manufacture and sales of various wires and cables

2. Q: What are your main products?
A: AAC/AAAC/ACSR/ACAR/AACSR/ACSR-AS/ACSS/ACSS-AW/ACS/GSW conductor, ABC cable, power cable, control cable, concentric cable,commonelectric wire, etc

3. Q: Can we have our logo or company name to be printed on your products or the package?
A: Yes, OEM and ODM are both acceptable for us.

4. Q: Do you provide samples? Free or not?
A: Yes, we’d like to provide free samples for your reference, but won’t bear the express fees.

5. Q: How long is your warranty period?
A: 1 year, and we promise to return or replace the cables within one year if any quality problem is found.
