Product Details:
|
| Certification: | CCC/CE | Color: | As Your Request |
|---|---|---|---|
| Conductor: | Copper Core | Insulation: | PVC Insulation Cable |
| Material: | PVC Copper | Size: | As Your Request |
| Jacket: | PVC/PE | Application: | Electrical Equipment |
| Conductor Type: | Stranded | ||
| High Light: | Heatproof Solar PV Cable,Durable Solar PV Cable,Sunlight Resistant Solar Photovoltaic Cable |
||

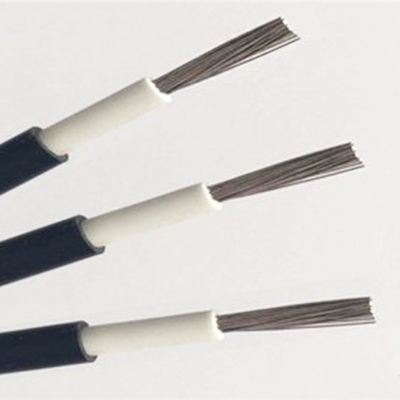

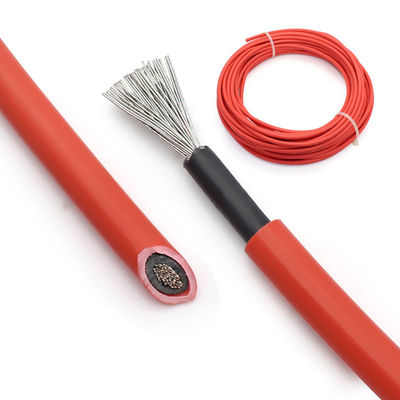

Factory direct selling high-quality green environmental protection crosslinked PE solar photovoltaic cable
Applications
Single conductor, sunlight-resistant, photovoltaic wire rated 90°C wet or 105°C dry 2000V for interconnection wiring of grounded and ungrounded photovoltaic power systems as described in Section 690.31(A) and other applicable parts of the National Electrical Code (NEC), NFPA 70
Options:
Colored phase ID stripes available on request
Multi-plexing available on request
Features:
Rated 90°C wet and dry
Deformation-resistant at high temperatures
Excellent moisture resistance,
Stable electrical properties over a broad temperature range
Excellent resistance to crush and compression cuts
Resistant to most oils and chemicals
UV/sunlight-resistant
Meets cold bend test at -40°C
| Product Name | TUV Standard Solar Cable |
| Model NO. | H1Z2Z2-K 1x 4mm2 |
| Voltage | High Voltage Cable |
| Insulation Material | XLPE |
| Material Shape | Round Wire |
| Certification | ROSH, CE, TUV |
| Standards | TUV EN50618 |
| Cores | 1 Core |
| Transport Package | Iron-Wooden Drum, Iron Drum |
| Application | Construction, Underground, Industrial, Power Station |
| Sheath Material | XLPE |
| Wire Core Material | Tinned Copper |
| Cross Section | 4mm2 |
|
|
Company introduction
We are a wire factory located in Zhejiang Haiyan, China.
We have professional, high quality machines and testing equipment. Main business Low voltage power cables, civil wires, audio cables, fire alarm cables,Control cable and other more than 30 series of products. The company's service purpose is Integrity-based, customer satisfaction for the principle. We hope that in the near future To work with you.
