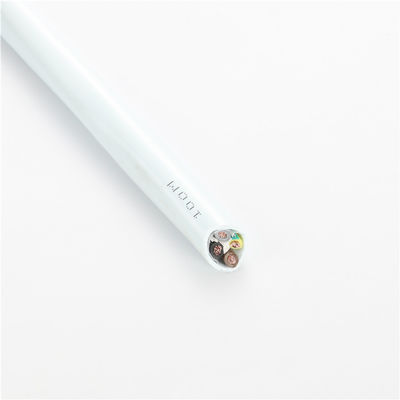

Flameproof Electrical Flex Cable , Straight 2.5 Sq Mm PVC Insulated Flexible Wire

Straight hair high-quality oxygen free copper 4 * 2.5mm round wire PVC insulated sheathed cable

Flexible Electrical Cable

This cable is suitable for industrial and home applications. It is designed for dry, moist and wet open areas as wellas under plaster,

walling and concrete. However, it is not recommended to lay the cable into the compacted concerete. Outerapplication is permitted

only in the case that cable is not exposed to direct sunlights.

• Product Name: RVV cable, RVV wire and cable
• Rated voltage: 300V / 500V.
• Conductor: stranded copper conductor
• Insulation: polyvinyl chloride mixture (PVC).
• Sheath: flexible polyvinyl chloride mixture (PVC)
• Number of cores: 2-5 cores, 7-36 cores (products outside CCC catalogue, without CCC certification).
• Sectional area: 0.75-2.5mm & sup2;, 0.5,2.5-35mm² (products outside CCC catalogue, no CCC certification).
• Test voltage: 2000V, 5min.
• Insulation resistance: > 200m Ω × KM.
• Service temperature: - 30 ~ + 70 ℃.
• Package specification: 100M, 500m, 1000m.
• Purpose: it is mainly used in power line, control line and signal transmission for electrical appliances, instruments, electronic equipment and automation devices. Specifically, it can be used in anti-theft alarm system, building intercom system, etc.

Specification and technical data of 300/500V wire Cross-sectional area Number of roots/diameter Outer diameter Conductor resistance at 20℃ 2*0.5 2*16/0.2 5.3 39 2*0.75 2*24/0.2 6.5 26 2*1.0 2*32/0.2 6.7 19.5 2*1.5 2*30/0.25 7.7 13.3 2*2.5 2*49/0.25 9.5 7.98 2*4.0 2*56/0.3 11.2 4.95 2*6.0 2*84/0.3 13.5 3.3 3*0.5 3*16/0.2 5.6 39 3*0.75 3*24/0.2 6.8 26 3*1.0 3*32/0.2 7.2 19.5 3*1.5 3*30/0.25 8.4 13.3 3*2.5 3*49/0.25 10.3 7.98 3*4.0 3*56/0.3 12.2 4.95 3*6.0 3*84/0.3 13.2 3.3 4*0.75 4*24/0.2 7.5 26 4*1.0 4*32/0.2 8.1 19.5 4*1.5 4*30/0.25 9.5 13.3 4*2.5 4*49/0.25 11.3 7.98 4*4.0 4*56/0.3 13.2 4.95 4*6.0 4*84/0.3 15 3.3 5*0.75 5*24/0.2 8.4 26 5*1.0 5*32/0.2 8.8 19.5 5*1.5 5*30/0.25 10.5 13.3 5*2.5 5*49/0.25 12.6 7.98 5*4.0 5*56/0.3 14.9 4.95 5*6.0 5*84/0.3 16.4 3.3
