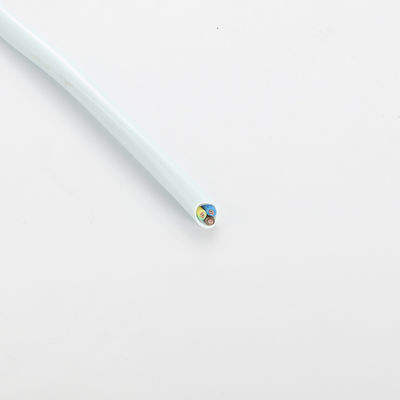

Heatproof PVC Oxygen Free Copper Wire , Diameter 7.2mm Electrical Flexible Cable

Heatproof PVC Oxygen Free Copper Wire , Diameter 7.2mm Electrical Flexible Cable
Heatproof PVC Oxygen Free Copper Wire , Diameter 7.2mm Electrical Flexible Cable
Heatproof PVC Oxygen Free Copper Wire , Diameter 7.2mm Electrical Flexible Cable Heatproof PVC Oxygen Free Copper Wire , Diameter 7.2mm Electrical Flexible Cable Heatproof PVC Oxygen Free Copper Wire , Diameter 7.2mm Electrical Flexible Cable Heatproof PVC Oxygen Free Copper Wire , Diameter 7.2mm Electrical Flexible Cable

Large Image :  Heatproof PVC Oxygen Free Copper Wire , Diameter 7.2mm Electrical Flexible Cable

Product Details:
Place of Origin: Zhejiang haiyan
Brand Name: HT
Model Number: RVV
Payment & Shipping Terms:
Minimum Order Quantity: 2000meter
Price: $0.412per meter
Packaging Details: Cartons and woven bags
Delivery Time: 20~30 work days
Payment Terms: T/T, L/C

Heatproof PVC Oxygen Free Copper Wire , Diameter 7.2mm Electrical Flexible Cable

Description
Certification: CCC/CE Color: As Your Request
Size: As Your Request Conductor: Copper Core
Insulation: PVC Insulation Cable Jacket: PVC/PE
Application: Electrical Equipment Conductor Type: Stranded
Type: Round
High Light:

Heatproof Oxygen Free Copper Wire

,

PVC Oxygen Free Copper Wire

,

7.2mm Electrical Flexible Cable

The manufacturer directly sells high-quality oxygen free copper rvv3 * 1.0mm PVC insulated wire and cable​



Copper core PVC insulated electric cable is a fine and ideal cable with conductor of plain annealed copper wires,solid or stranded.These cables are used for general purpose,as building wire for power, lighting and control wire to electrical appliances,suitable for use in conduit and for fixed,protected installation. The cable can be of flame ratardance,fire resistance and other property.



Application
a. Use as home appliance wiring cable, building wire
b. Use as electrical and electronic equipment internal connecting wire
c. Use as lighting wire
d. House wiring cable


  • Product Name: RVV cable, RVV wire and cable
  • Rated voltage: 300V / 500V.
  • Conductor: stranded copper conductor
  • Insulation: polyvinyl chloride mixture (PVC).
  • Sheath: flexible polyvinyl chloride mixture (PVC)
  • Number of cores: 2-5 cores, 7-36 cores (products outside CCC catalogue, without CCC certification).
  • Sectional area: 0.75-2.5mm & sup2;, 0.5,2.5-35mm² (products outside CCC catalogue, no CCC certification).
  • Test voltage: 2000V, 5min.
  • Insulation resistance: > 200m Ω × KM.
  • Service temperature: - 30 ~ + 70 ℃.
  • Package specification: 100M, 500m, 1000m.
  • Purpose: it is mainly used in power line, control line and signal transmission for electrical appliances, instruments, electronic equipment and automation devices. Specifically, it can be used in anti-theft alarm system, building intercom system, etc.



Specification and technical data of 300/500V wire
Cross-sectional area Number of roots/diameter Outer diameter Conductor resistance at 20℃
2*0.5 2*16/0.2 5.3 39
2*0.75 2*24/0.2 6.5 26
2*1.0 2*32/0.2 6.7 19.5
2*1.5 2*30/0.25 7.7 13.3
2*2.5 2*49/0.25 9.5 7.98
2*4.0 2*56/0.3 11.2 4.95
2*6.0 2*84/0.3 13.5 3.3
3*0.5 3*16/0.2 5.6 39
3*0.75 3*24/0.2 6.8 26
3*1.0 3*32/0.2 7.2 19.5
3*1.5 3*30/0.25 8.4 13.3
3*2.5 3*49/0.25 10.3 7.98
3*4.0 3*56/0.3 12.2 4.95
3*6.0 3*84/0.3 13.2 3.3
4*0.75 4*24/0.2 7.5 26
4*1.0 4*32/0.2 8.1 19.5
4*1.5 4*30/0.25 9.5 13.3
4*2.5 4*49/0.25 11.3 7.98
4*4.0 4*56/0.3 13.2 4.95
4*6.0 4*84/0.3 15 3.3
5*0.75 5*24/0.2 8.4 26
5*1.0 5*32/0.2 8.8 19.5
5*1.5 5*30/0.25 10.5 13.3
5*2.5 5*49/0.25 12.6 7.98
5*4.0 5*56/0.3 14.9 4.95
5*6.0 5*84/0.3 16.4 3.3

Heatproof PVC Oxygen Free Copper Wire , Diameter 7.2mm Electrical Flexible Cable 0Heatproof PVC Oxygen Free Copper Wire , Diameter 7.2mm Electrical Flexible Cable 1Heatproof PVC Oxygen Free Copper Wire , Diameter 7.2mm Electrical Flexible Cable 2Heatproof PVC Oxygen Free Copper Wire , Diameter 7.2mm Electrical Flexible Cable 3Heatproof PVC Oxygen Free Copper Wire , Diameter 7.2mm Electrical Flexible Cable 4Heatproof PVC Oxygen Free Copper Wire , Diameter 7.2mm Electrical Flexible Cable 5Heatproof PVC Oxygen Free Copper Wire , Diameter 7.2mm Electrical Flexible Cable 6



about us

We are a wire factory located in Zhejiang Haiyan, China.
We have professional, high quality machines and testing equipment.

Main business Low voltage power cables, civil wires, audio cables, fire alarm cables,Control cable and other more than 30 series of products.

The company's service purpose is Integrity-based, customer satisfaction for the principle.

We hope that in the near future To work with you.
