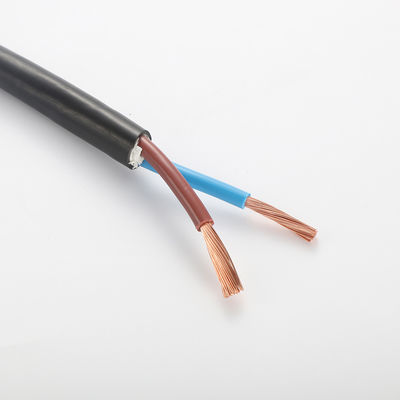

Spot high-quality oxygen free copper 2-core round wire PVC insulated sheath cable
Working voltage and temperature:
H07RN-F model rated voltage U0/U IS 450/750V
H05RN-F model rated voltage U0/U IS 300/500V
H05RR-F model rated voltage U0/U IS 300/500V
Long time allow working temperature of wire core cant be higher than 60C
H07RN-F Cable Construction:
- Conductor: Stranded Bare Copper acc. to IEC 60228, EN 60228, VDE 0295, class 5
- Insulation: Synthetic Rubber, EI4 acc. to DIN VDE 0282 part 1 + HD 22.1
- Conductor Color Coding: acc. to HD 308 (VDE 0293-308)
- Conductor Stranding: from 2 conductors stranded in layers
- Jacket: Synthetic Rubber, EM2 acc. to DIN VDE 0282 part 1 + HD 22.1
- Jacket Color: Black
- Product Name: RVV cable, RVV wire and cable
- Rated voltage: 300V / 500V.
- Conductor: stranded copper conductor
- Insulation: polyvinyl chloride mixture (PVC).
- Sheath: flexible polyvinyl chloride mixture (PVC)
- Number of cores: 2-5 cores, 7-36 cores (products outside CCC catalogue, without CCC certification).
- Sectional area: 0.75-2.5mm & sup2;, 0.5,2.5-35mm² (products outside CCC catalogue, no CCC certification).
- Test voltage: 2000V, 5min.
- Insulation resistance: > 200m Ω × KM.
- Service temperature: - 30 ~ + 70 ℃.
- Package specification: 100M, 500m, 1000m.
- Purpose: it is mainly used in power line, control line and signal transmission for electrical appliances, instruments, electronic equipment and automation devices. Specifically, it can be used in anti-theft alarm system, building intercom system, etc.
| Specification and technical data of 300/500V wire |
| Cross-sectional area |
Number of roots/diameter |
Outer diameter |
Conductor resistance at 20℃ |
| 2*0.5 |
2*16/0.2 |
5.3 |
39 |
| 2*0.75 |
2*24/0.2 |
6.5 |
26 |
| 2*1.0 |
2*32/0.2 |
6.7 |
19.5 |
| 2*1.5 |
2*30/0.25 |
7.7 |
13.3 |
| 2*2.5 |
2*49/0.25 |
9.5 |
7.98 |
| 2*4.0 |
2*56/0.3 |
11.2 |
4.95 |
| 2*6.0 |
2*84/0.3 |
13.5 |
3.3 |
| 3*0.5 |
3*16/0.2 |
5.6 |
39 |
| 3*0.75 |
3*24/0.2 |
6.8 |
26 |
| 3*1.0 |
3*32/0.2 |
7.2 |
19.5 |
| 3*1.5 |
3*30/0.25 |
8.4 |
13.3 |
| 3*2.5 |
3*49/0.25 |
10.3 |
7.98 |
| 3*4.0 |
3*56/0.3 |
12.2 |
4.95 |
| 3*6.0 |
3*84/0.3 |
13.2 |
3.3 |
| 4*0.75 |
4*24/0.2 |
7.5 |
26 |
| 4*1.0 |
4*32/0.2 |
8.1 |
19.5 |
| 4*1.5 |
4*30/0.25 |
9.5 |
13.3 |
| 4*2.5 |
4*49/0.25 |
11.3 |
7.98 |
| 4*4.0 |
4*56/0.3 |
13.2 |
4.95 |
| 4*6.0 |
4*84/0.3 |
15 |
3.3 |
| 5*0.75 |
5*24/0.2 |
8.4 |
26 |
| 5*1.0 |
5*32/0.2 |
8.8 |
19.5 |
| 5*1.5 |
5*30/0.25 |
10.5 |
13.3 |
| 5*2.5 |
5*49/0.25 |
12.6 |
7.98 |
| 5*4.0 |
5*56/0.3 |
14.9 |
4.95 |
| 5*6.0 |
5*84/0.3 |
16.4 |
3.3 |
|
 |
