Product Details:
|
| Certification: | CCC/CE | Color: | As Your Request |
|---|---|---|---|
| Conductor: | Copper Core | Insulation: | Rubber Insulation Cable |
| Material: | Rubber+ Copper | Size: | As Your Request |
| Jacket: | Rubber | Application: | Electrical Equipment |
| Conductor Type: | Stranded | ||
| High Light: | Antifreeze Welding Machine Cable,Single Core Rubber Cable,Antifreeze Rubber Cable |
||

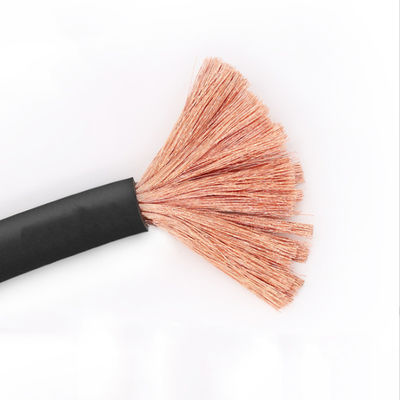

Single core rubber cable for antifreeze and wear-resistant electric welding machine of pure copper welding wire
Product Description:
Category: Welding Machine Cable
Model: YH/YHF
Specifications : Optional
Working Temperature: 65℃
Rated Voltage: 200V
Conductor: Bare Copper/Tinned Copper
Insulation: Rubber/PVC
Application:
Welding machine is applicable to the welding machine cable secondary side wiring and connecting cables for the electric welding clamp, the exchange rated voltage not exceeding 200V DC and pulse peak 400 V. For a single-core structure, a multi-unit made of soft wire-cutter. Conductive core line outside a thermally insulated with polyester film around the package, with the outer layer made of rubber insulation and jacket as a protective layer.
Features
1) Using aluminium alloy as conductor makes cables a much lower price but almost the same performence as
copper cables;
2) Low resistance & low voltage;
3) Long term work temperature is 65℃;
4) Great bending property allows frequent mobile and twisting;
5) The rubber as sheath material is dedicated for welding cable with excellent tear resistance and abrasion resistance;
| Nom. Area mm2 |
Max. Dia. of wire mm |
Nom. Cover Thickness mm |
Average O.D. mm | Maximum DC Resistance at 20℃ Ω/km |
||
| Min. | Max. | Tinned copper | Un tinned copper | |||
| 10 | 0.21 | 2.0 | 7.7 | 9.7 | 1.95 | 1.91 |
| 16 | 2.0 | 8.8 | 11.0 | 1.24 | 1.21 | |
| 25 | 2.0 | 10.1 | 12.7 | 0.795 | 0.780 | |
| 35 | 2.0 | 11.4 | 14.2 | 0.565 | 0.554 | |
| 50 | 2.2 | 13.2 | 16.5 | 0.393 | 0.386 | |
| 70 | 2.4 | 15.3 | 19.2 | 0.277 | 0.272 | |
| 95 | 2.6 | 17.1 | 21.4 | 0.210 | 0.206 | |
| 120 | 0.51 | 2.8 | 19.2 | 24.0 | 0.164 | 0.161 |
| 150 | 3.0 | 21.1 | 26.4 | 0.132 | 0.129 | |
| 185 | 3.2 | 23.1 | 28.9 | 0.108 | 0.106 | |
|
|
Company introduction
We are a wire factory located in Zhejiang Haiyan, China.
We have professional, high quality machines and testing equipment. Main business Low voltage power cables, civil wires, audio cables, fire alarm cables,Control cable and other more than 30 series of products. The company's service purpose is Integrity-based, customer satisfaction for the principle. We hope that in the near future To work with you.
