Product Details:
|
| Certification: | CCC/CE | Color: | As Your Request |
|---|---|---|---|
| Conductor: | Copper Core | Insulation: | Rubber Insulation Cable |
| Material: | Rubber+ Copper | Size: | As Your Request |
| Jacket: | Rubber | Application: | Electrical Equipment |
| Conductor Type: | Stranded | ||
| High Light: | Neoprene Power Cable For Welding Machine,Flameproof Power Cable For Welding Machine,Alkali Resistant Welding Cable Wire |
||

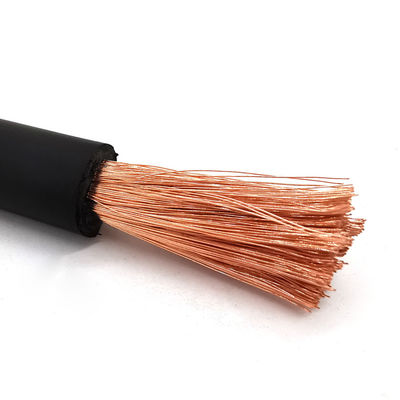

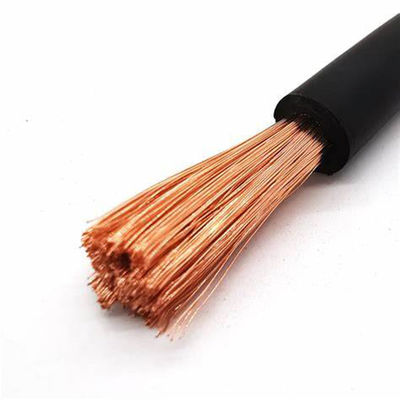

High quality oxygen free copper flexible neoprene insulated electric welding machine cable
Application range:
- Hard-hold and power supply device acc
- Day and damp interiors, as well as for limited outdoor use acc
- Light and sound technology
Product feathers:
- Cable working temperature should not exceed +65°C
- Cable have a certain extent of temperature resistance and oil resistance, fit to work outside and working in the smeary enrivonment
| Nom. Area mm2 |
Max. Dia. of wire mm |
Nom. Cover Thickness mm |
Average O.D. mm | Maximum DC Resistance at 20℃ Ω/km |
||
| Min. | Max. | Tinned copper | Un tinned copper | |||
| 10 | 0.21 | 2.0 | 7.7 | 9.7 | 1.95 | 1.91 |
| 16 | 2.0 | 8.8 | 11.0 | 1.24 | 1.21 | |
| 25 | 2.0 | 10.1 | 12.7 | 0.795 | 0.780 | |
| 35 | 2.0 | 11.4 | 14.2 | 0.565 | 0.554 | |
| 50 | 2.2 | 13.2 | 16.5 | 0.393 | 0.386 | |
| 70 | 2.4 | 15.3 | 19.2 | 0.277 | 0.272 | |
| 95 | 2.6 | 17.1 | 21.4 | 0.210 | 0.206 | |
| 120 | 0.51 | 2.8 | 19.2 | 24.0 | 0.164 | 0.161 |
| 150 | 3.0 | 21.1 | 26.4 | 0.132 | 0.129 | |
| 185 | 3.2 | 23.1 | 28.9 | 0.108 | 0.106 | |
|
|
Company introduction
We are a wire factory located in Zhejiang Haiyan, China.
We have professional, high quality machines and testing equipment. Main business Low voltage power cables, civil wires, audio cables, fire alarm cables,Control cable and other more than 30 series of products. The company's service purpose is Integrity-based, customer satisfaction for the principle. We hope that in the near future To work with you.
