Product Details:
|
| Certification: | CCC/CE | Color: | As Your Request |
|---|---|---|---|
| Conductor: | Copper Core/Aluminum Core | Insulation: | PVC Insulation Cable |
| Material: | PVC+ Copper/Aluminum | Size: | As Your Request |
| Jacket: | PVC/PE | Application: | Electrical Equipment |
| Conductor Type: | Stranded | ||
| High Light: | Single Core Overhead Insulated Cable,Oilproof Overhead Insulated Cable,Anti Insulation Single Core Armored Cable |
||

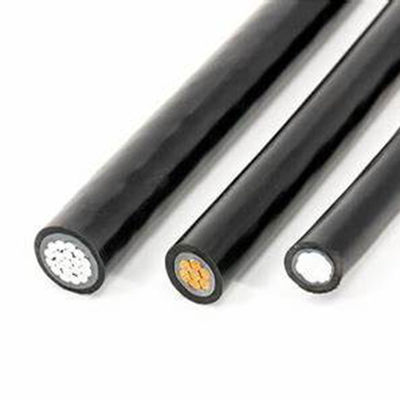

Factory direct aluminum wire overhead insulated cable yjlv single core PVC sheathed armored cable
1. Aluminum Wire, 1350-H19 for Electrical Purposes.
2. Aluminum Conductors, Concentric-Lay-Stranded.
3. Aluminum Conductor, Concentric-Lay-Stranded, Coated Steel Reinforced (ACSR).
4. Concentric-Lay-Stranded 6201-T81 Conductors.
5. Compressed Round Stranded Aluminum Conductors Using Single Input Wire.
Insulation: PVC, XLPE, PE
GB/T 12527-2008, IEC60502,
Rated voltage: 0.6/1kV
Relative manufacturing standards: IEC61089, ASTM B231, ASTM B232, BS215, DIN48201, DIN48204.
We can also manufacture ABC cable according to customer's special requirements.
| Cable Size | Current Rating (Note 1) | Short Circuit Rating (Note 2) | Conductor Resistance @ 20°C | Conductor Resistance (ac) @ 80°C | Self Supporting System | Supporting Core System | |||||||
| Induction Reactance @ 50Hz | Impendance (z) @ 50Hz at 80°C | Supporting Core Size | Induction Reactance @ 50Hz | Impendance (z) @ 50Hz at 80°C | |||||||||
| mm² | (A) | kA | ( /km) | ( /km) | ( /km) | ( /km) | mm² | ( /km) | ( /km) | ||||
| 25 | 105 | 2.3 | 1.200 | 1.490 | 0.096 | 1.493 | 54.6 | 0.101 | 1.493 | ||||
| 35 | 144 | 3.2 | 0.868 | 1.078 | 0.096 | 1.082 | 54.6 | 0.097 | 1.082 | ||||
| 50 | 183 | 4.6 | 0.641 | 0.796 | 0.090 | 0.801 | 54.6 | 0.089 | 0.801 | ||||
| 70 | 228 | 6.4 | 0.443 | 0.550 | 0.089 | 0.557 | 54.6 | 0.086 | 0.557 | ||||
| 95 | 277 | 8.5 | 0.320 | 0.397 | 0.086 | 0.406 | 54.6 | 0.081 | 0.405 | ||||
| 120 | 322 | 11.0 | 0.253 | 0.314 | 0.084 | 0.325 | 70 | 0.079 | 0.324 | ||||
| 150 | 350 | 13.8 | 0.206 | 0.256 | 0.082 | 0.269 | 95 | 0.079 | 0.268 | ||||
|
Company introduction
We are a wire factory located in Zhejiang Haiyan, China.
We have professional, high quality machines and testing equipment. Main business Low voltage power cables, civil wires, audio cables, fire alarm cables,Control cable and other more than 30 series of products. The company's service purpose is Integrity-based, customer satisfaction for the principle. We hope that in the near future To work with you.
