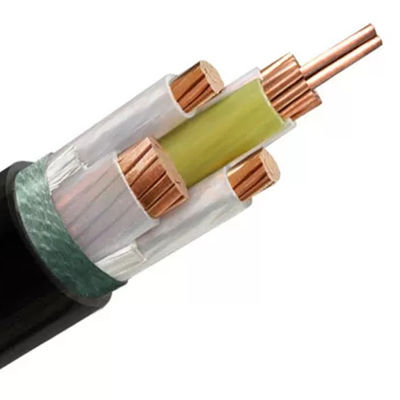

Antiwear XLPE Cross Linked Polyethylene Insulated Cable With PEX Jacket
  • Antiwear XLPE Cross Linked Polyethylene Insulated Cable With PEX Jacket
  • Antiwear XLPE Cross Linked Polyethylene Insulated Cable With PEX Jacket
  • Antiwear XLPE Cross Linked Polyethylene Insulated Cable With PEX Jacket
Antiwear XLPE Cross Linked Polyethylene Insulated Cable With PEX Jacket

Antiwear XLPE Cross Linked Polyethylene Insulated Cable With PEX Jacket

Place of Origin Zhejiang haiyan
Brand Name HT
Certification CE/CCC
Model Number XLPE
Product Details
Color:
As Your Request
Conductor:
Copper Core
Insulation:
PEX Insulation Cable
Certification:
CCC/CE
Material:
PEX Copper
Size:
As Your Request
Jacket:
PEX/PE
Application:
Electrical Equipment
Conductor Type:
Stranded
High Light:

PEX Cross Linked Polyethylene Insulated Cable

,

PVC Cross Linked Polyethylene Insulated Cable

,

Antiwear XLPE Insulated PVC Sheathed Cable

Payment & Shipping Terms
Minimum Order Quantity
2000meter
Price
Consult customer service
Packaging Details
Cartons and woven bags
Delivery Time
20~30 work days
Payment Terms
T/T, L/C
Product Description

High quality oxygen free copper XLPE insulated cable is suitable for power grid industrial devices





Armoured cables for fixed installations, suitable for indoor and outdoor installation, in air and ground



- Laid on walls, in cable ducts, on cable trays.



- These cables are not designed to be laid up in wet environments



- Maximum temperature rating of the conductor: +90 °C



CONSTRUCTION CHARACTERISTICS



Conductor material Copper
Conductor flexibility Stranded class 2 to IEC 60228
Insulation PVC
Inner sheath PVC
Armour type Galvanized steel tapes
Outer sheath PVC
Colour Black
Lead free Yes







No.cores x cross-sec. Insulation thickness Inner Sheath thickness Sheath thickness Nominal value Outer Ø approx. weight approx. Current ratings in air 30℃ Current ratings buried 20℃
Phase Neutral
mm² mm mm mm mm mm kg / km A A
4×4＋1×2.5 0.7 0.7 0.9 1.8 17.4 499 38 46
4×6＋1×4.0 0.7 0.7 0.9 1.8 18.8 622 48 58
4×10＋1×6.0 0.7 0.7 0.9 1.8 21.3 862 66 79
4×16＋1×10 0.7 0.7 0.9 1.8 24.0 1199 88 103
4×25＋1×16 0.9 0.7 0.9 1.8 28.1 1748 117 133
4×35＋1×16 0.9 0.7 0.9 1.8 31.9 2509 145 160
4×50＋1×25 1.0 0.9 0.9 2.0 36.2 3359 177 191
4×70＋1×35 1.1 0.9 1.2 2.2 41.1 4429 228 238
4×95＋1×50 1.1 1.0 1.2 2.3 46.4 5829 277 281
4×120＋1×70 1.2 1.1 1.2 2.5 51.5 7250 324 320
4×150＋1×70 1.4 1.1 1.4 2.6 56.3 8676 369 361
4×185＋1×95 1.6 1.1 1.4 2.8 62.2 10606 428 408
4×240＋1×120 1.7 1.2 1.4 3.0 69.0 13393 510 475
4×300＋1×150 1.8 1.4 1.4 3.2 76.0 16428 592 541




Antiwear XLPE Cross Linked Polyethylene Insulated Cable With PEX Jacket 0

Antiwear XLPE Cross Linked Polyethylene Insulated Cable With PEX Jacket 1Antiwear XLPE Cross Linked Polyethylene Insulated Cable With PEX Jacket 2

Antiwear XLPE Cross Linked Polyethylene Insulated Cable With PEX Jacket 3Antiwear XLPE Cross Linked Polyethylene Insulated Cable With PEX Jacket 4



Company introduction
We are a wire factory located in Zhejiang Haiyan, China.
We have professional, high quality machines and testing equipment. Main business Low voltage power cables, civil wires, audio cables, fire alarm cables,Control cable and other more than 30 series of products. The company's service purpose is Integrity-based, customer satisfaction for the principle. We hope that in the near future To work with you.


FAQ

1. Q: Are you a factory or trading company?
A: We’re a factory locates in Zhejiang Province, which integrates R&D, manufacture and sales of various wires and cables

2. Q: What are your main products?
A: AAC/AAAC/ACSR/ACAR/AACSR/ACSR-AS/ACSS/ACSS-AW/ACS/GSW conductor, ABC cable, power cable, control cable, concentric cable,commonelectric wire, etc

3. Q: Can we have our logo or company name to be printed on your products or the package?
A: Yes, OEM and ODM are both acceptable for us.

4. Q: Do you provide samples? Free or not?
A: Yes, we’d like to provide free samples for your reference, but won’t bear the express fees.

5. Q: How long is your warranty period?
A: 1 year, and we promise to return or replace the cables within one year if any quality problem is found.
