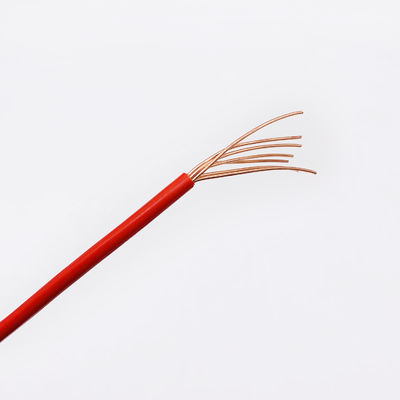

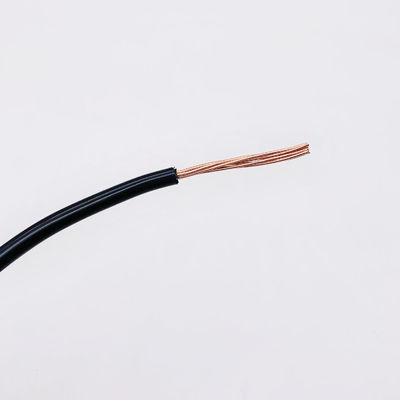

BVR 10.0mm2 Single Core PVC Insulated Wire Pure Copper

BVR 10.0mm2 Single Core PVC Insulated Wire Pure Copper
BVR 10.0mm2 Single Core PVC Insulated Wire Pure Copper BVR 10.0mm2 Single Core PVC Insulated Wire Pure Copper BVR 10.0mm2 Single Core PVC Insulated Wire Pure Copper

Large Image :  BVR 10.0mm2 Single Core PVC Insulated Wire Pure Copper

Product Details:
Place of Origin: Zhejiang haiyan
Brand Name: HT
Model Number: BV
Payment & Shipping Terms:
Minimum Order Quantity: 2000meter
Price: Consulting customer service
Packaging Details: Cartons and woven bags
Delivery Time: 20~30 work days
Payment Terms: T/T, L/C

BVR 10.0mm2 Single Core PVC Insulated Wire Pure Copper

Description
Certification: CCC/CE Color: As Your Request
Size: As Your Request Conductor: Copper Core
Insulation: PVC Insulation Cable Material: PVC Copper
Jacket: PVC/PE Application: Electrical Equipment
Conductor Type: Stranded
High Light:

Pure Copper Single Core Cable

,

10 Sq Mm Single Core Copper Wire

,

10.0mm2 PVC Insulated Wire

High quality pure copper BVR 10.0mm ² Single core cable environment-friendly new PVC insulated cloth wire



1. Product standard:
The production standard for anti-flaming and fire-resistant cables is GB/T19666-2005,GB/T5023-2008,JB/T8734-2012

2. Main of cables features
1, Uo/U is 450/750V,300/500,
2, Long-term allowable temperature of the cable:The allowable temperature of 105 Cable should not exceed 105℃, the allowable temperature of other models should not exceed 70℃.

3. Copper core PVC insulated electric cable is a fine and ideal cable with conductor of plain annealed copper wires,solid or stranded.These cables are used for general purpose,as building wire for power, lighting and control wire to electrical appliances,suitable for use in conduit and for fixed,protected installation. The cable can be of flame ratardance,fire resistance and other property.

4. Application
a. Use as home appliance wiring cable, building wire
b. Use as electrical and electronic equipment internal connecting wire
c. Use as lighting wire
d. House wiring cable





Specification and technical data of 450/750V wire


Cross-sectional area

Number of roots/diameter

Largest diameter

Conductor resistance at 20℃

0.5 1/0.8 2.7 36
0.75 1/0.97 2.8 24.5
1 1/1.13 3 18.1
1.5(A) 1/1.38 3.3 12.1
1.5(B) 7/0.52 3.5 12.1
2.5(A) 1/1.78 3.9 7.41
2.5(B) 7/0.68 4.2 7.41
4.0(A) 1/2.25 4.4 4.61
4.0(B) 7/0.85 4.8 4.61
6.0(A) 1/2.75 4.9 3.08
6.0(B) 7/1.04 5.4 3.08
10 7/1.35 7 1.83
16 7/1.7 8 1.15
25 7/2.14 10 0.727
35 7/2.52 11.5 0.524
50 19/1.78 13 0.387
70 19/2.14 15 0.268
95 19/2.52 17.5 0.193
120 37/2.03 19 0.153
150 37/2.25 21 0.124
185 37/2.52 23.5 0.0991
240 61/2.25 26.5 0.0754
300 61/2.52 29.5 0.0601
400 61/2.85 33 0.047





BVR 10.0mm2 Single Core PVC Insulated Wire Pure Copper 0BVR 10.0mm2 Single Core PVC Insulated Wire Pure Copper 1BVR 10.0mm2 Single Core PVC Insulated Wire Pure Copper 2BVR 10.0mm2 Single Core PVC Insulated Wire Pure Copper 3BVR 10.0mm2 Single Core PVC Insulated Wire Pure Copper 4BVR 10.0mm2 Single Core PVC Insulated Wire Pure Copper 5BVR 10.0mm2 Single Core PVC Insulated Wire Pure Copper 6



Company introduction
We are a wire factory located in Zhejiang Haiyan, China.
We have professional, high quality machines and testing equipment. Main business Low voltage power cables, civil wires, audio cables, fire alarm cables,Control cable and other more than 30 series of products. The company's service purpose is Integrity-based, customer satisfaction for the principle. We hope that in the near future To work with you.


FAQ
1. Q: Are you a factory or trading company?
A: We’re a factory locates in Zhejiang Province, which integrates R&D, manufacture and sales of various wires and cables
2. Q: What are your main products?
A: AAC/AAAC/ACSR/ACAR/AACSR/ACSR-AS/ACSS/ACSS-AW/ACS/GSW conductor, ABC cable, power cable, control cable, concentric cable,commonelectric wire, etc
3. Q: Can we have our logo or company name to be printed on your products or the package?
A: Yes, OEM and ODM are both acceptable for us.
4. Q: Do you provide samples? Free or not?
A: Yes, we’d like to provide free samples for your reference, but won’t bear the express fees.
5. Q: How long is your warranty period?
A: 1 year, and we promise to return or replace the cables within one year if any quality problem is found.
