2 Core 2.5 Square Flat Wire Electrical Cable White Sheathed Parallel

Certification
China Haiyan Hetai Cable Co., Ltd. certification
China Haiyan Hetai Cable Co., Ltd. certification
I'm Online Chat Now

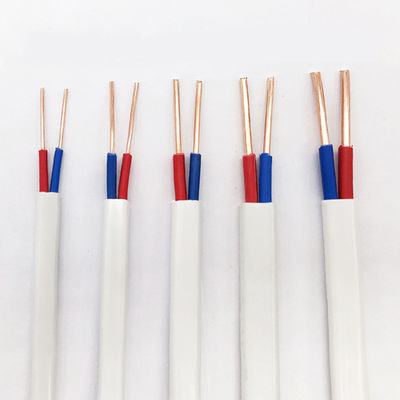

2 Core 2.5 Square Flat Wire Electrical Cable White Sheathed Parallel

2 Core 2.5 Square Flat Wire Electrical Cable White Sheathed Parallel
2 Core 2.5 Square Flat Wire Electrical Cable White Sheathed Parallel 2 Core 2.5 Square Flat Wire Electrical Cable White Sheathed Parallel

Large Image :  2 Core 2.5 Square Flat Wire Electrical Cable White Sheathed Parallel

Product Details:
Place of Origin: Zhejiang haiyan
Brand Name: HT
Model Number: BVVB
Payment & Shipping Terms:
Minimum Order Quantity: 2000meter
Price: Consult customer service
Packaging Details: Cartons and woven bags
Delivery Time: 20~30 work days
Payment Terms: T/T, L/C

2 Core 2.5 Square Flat Wire Electrical Cable White Sheathed Parallel

Description
Certification: CCC/CE Color: As Your Request
Conductor: Copper Core Insulation: PVC Insulation Cable
Material: PVC Copper Size: As Your Request
Jacket: PVC/PE Application: Electrical Equipment
Conductor Type: Stranded
High Light:

2Core Flat Wire Electrical Cable

,

2.5Square Flat Wire Electrical Cable

,

Sheathed Parallel Flat 2 Core Wire

BVVB pure copper white sheathed parallel wire 2-core * 2.5 square flame retardant home decoration wire



ZR cable (flame retardant cable) is the kind of cable with PVC insulation built mixed with fire prevention additive to make it have the capability of preventing or retarding flame spread during combustion.

There are 3 grades of fire prevention available which are

Grade A It is the highest level of flame retardancy. That is, the insulation material, filling rope, fastening (inner cushion) belt/layer and sheath material used in cables are all flame retardant materials.

Grade B Except the insulation material, all other materials are flame retardant.

Grade C Only the sheath material is flame retardant



Color for core identification:

- Two core : Red – Yellow.
- Three core : Red – Yellow.– Blue.
- Four cores: Red – Yellow.– Blue – Black.

Specification and technical data of 300/500V wire

Cross-sectional area Number of roots/diameter Largest diameter Conductor resistance at 20℃
2*0.75 2*1/0.97 4.6*7 24.5
2*1.0 2*1/1.13 4.8*7.4 18.1
2*1.5 2*1/1.38 5.4*8.4 12.1
2*2.5 2*1/1.78 6.2*9.8 7.41
2*4.0 2*7/0.85 7.2*11.5 4.61
2*6.0 2*7/1.04 8*13 3.08
2*10 2*7/1.35 9.6*16 1.83
3*0.75 3*1/0.97 4.6*9.4 24.5
3*1.0 3*1/1.13 4.8*9.8 18.1
3*1.5 3*1/1.38 5.4*11.5 12.1
3*2.5 3*1/1.78 6.2*13.5 7.41
3*4.0 3*7/0.85 7.4*16.5 4.61
3*6.0 3*7/1.04 8*18 3.08
3*10 3*7/1.35 9.6*22.5 1.83

2 Core 2.5 Square Flat Wire Electrical Cable White Sheathed Parallel 02 Core 2.5 Square Flat Wire Electrical Cable White Sheathed Parallel 12 Core 2.5 Square Flat Wire Electrical Cable White Sheathed Parallel 22 Core 2.5 Square Flat Wire Electrical Cable White Sheathed Parallel 32 Core 2.5 Square Flat Wire Electrical Cable White Sheathed Parallel 42 Core 2.5 Square Flat Wire Electrical Cable White Sheathed Parallel 5



Company introduction

We are a wire factory located in Zhejiang Haiyan, China.
We have professional, high quality machines and testing equipment. Main business Low voltage power cables, civil wires, audio cables, fire alarm cables,Control cable and other more than 30 series of products. The company's service purpose is Integrity-based, customer satisfaction for the principle. We hope that in the near future To work with you.



FAQ
1. Q: Are you a factory or trading company?
A: We’re a factory locates in Zhejiang Province, which integrates R&D, manufacture and sales of various wires and cables

2. Q: What are your main products?
A: AAC/AAAC/ACSR/ACAR/AACSR/ACSR-AS/ACSS/ACSS-AW/ACS/GSW conductor, ABC cable, power cable, control cable, concentric cable,commonelectric wire, etc

3. Q: Can we have our logo or company name to be printed on your products or the package?
A: Yes, OEM and ODM are both acceptable for us.

4. Q: Do you provide samples? Free or not?
A: Yes, we’d like to provide free samples for your reference, but won’t bear the express fees.

5. Q: How long is your warranty period?
A: 1 year, and we promise to return or replace the cables within one year if any quality problem is found.
