Product Details:
|
| Certification: | CCC/CE | Color: | As Your Request |
|---|---|---|---|
| Conductor: | Copper Core/Aluminum Core | Insulation: | PVC/ Rubber Insulation Cable |
| Material: | Rubber+ Copper/Aluminum | Size: | As Your Request |
| Jacket: | Rubber | Application: | Electrical Equipment |
| Conductor Type: | Stranded | ||
| High Light: | Antiwear Rubber Electrical Wire,750V Rubber Electrical Wire,Mildewproof Tough Sheath Cable |
||

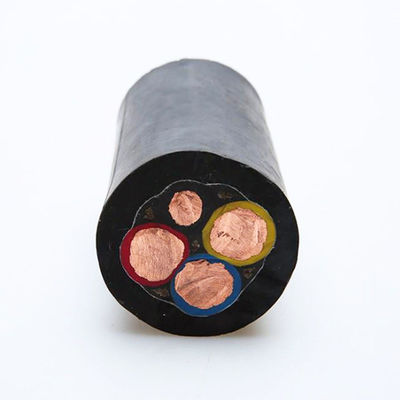

YC rubber sheathed cable copper core heavy rubber sheathed flexible cable welding wire and cable
Standard:
The rubber sheathed flexible cable with rated voltage up to 450/750V is in accordance with the standard GB5013-1997.
Rubber insulated flexible wire and cable with rated voltage up to 450/750V is in accordance with the standard JB8735-1998.
Specific Property for Using:
The long-time permissible working temperature of conductor is 60℃.
The product is used for the drive devices, household electric instruments, all kinds of portable electrical equipment and electromotive tools at A.C rated voltage U./U up to and including 450/750V.
Introduction:
Rubber sheathed cables are widely used in various electrical equipment, such as portable power cords for household appliances, electrical machinery, electrical equipment and appliances, and can be used in indoor or outdoor environmental conditions.
According to the mechanical external force of the cable, the product structure is divided into three categories: light, medium and heavy, and there is also an appropriate connection in the section. Generally, light rubber-sheathed cables are used in household electrical appliances and small electric equipment, requiring softness, lightness, and good bending performance.
In addition to industrial use of medium-sized rubber sheathed cables. It is widely used in the electrification of agriculture. Heavy-duty cables are used in occasions such as port machinery, searchlights, and large-scale water-powered irrigation and drainage stations for household businesses. This type of product has good versatility, complete series specifications, good performance and stability.
| Cross-Sectional Area mm2 |
Number diameter of core | Overall Diameter | Max.D.C resistance of at 20℃ MΩ/km |
Approx Weight (kg/km) |
|||
| min | max | Copper | Tinned-Copper | YZ | YZW | ||
| 2x0.75 | 24/0.2 | 5.7 | 7.4 | 26 | 26.7 | 81.7 | 89.6 |
| 2x1 | 32/0.2 | 6.1 | 8 | 19.7 | 20 | 123 | 138 |
| 2x1.5 | 16/0.25 | 7.6 | 9.8 | 13.3 | 13.7 | 185 | 196 |
| 2x2.5 | 28/0.25 | 9 | 11.6 | 7.98 | 8.21 | 234 | 252 |
| 2x4 | 56/0.3 | 10.6 | 13.7 | 4.95 | 5.09 | 255 | 276 |
| 2x6 | 84/0.3 | 11.8 | 15.1 | 3.3 | 3.39 | 356 | 371 |
| 3x0.75 | 24/0.2 | 6.2 | 8.1 | 26 | 26.7 | 97.4 | 105 |
| 3x1 | 32/0.2 | 6.5 | 8.5 | 19.7 | 20 | 112 | 126 |
| 3x1.5 | 16/0.25 | 8 | 10.4 | 13.3 | 13.7 | 156 | 174 |
| 3x2.5 | 28/0.25 | 9.6 | 12.4 | 7.98 | 8.21 | 204 | 2019 |
| 3x4 | 56/0.3 | 11.3 | 14.5 | 4.95 | 5.09 | 285 | 302 |
| 3x6 | 84/0.3 | 12.6 | 16.1 | 3.3 | 3.39 | 398 | 423 |
| 4x0.75 | 24/0.2 | 6.8 | 8.8 | 26 | 26.7 | 117 | 125 |
| 4x1 | 32/0.2 | 7.1 | 9.3 | 19.7 | 20 | 134 | 148 |
| 4x1.5 | 16/0.25 | 9 | 11.6 | 13.3 | 13.7 | 186 | 206 |
| 4x2.5 | 28/0.25 | 10.7 | 13.8 | 7.98 | 8.21 | 255 | 270 |
| 4x4 | 56/0.3 | 12.7 | 13.8 | 4.95 | 5.09 | 356 | 374 |
| 4x6 | 84/0.3 | 14 | 17.9 | 3.3 | 3.39 | 465 | 482 |
|
|
