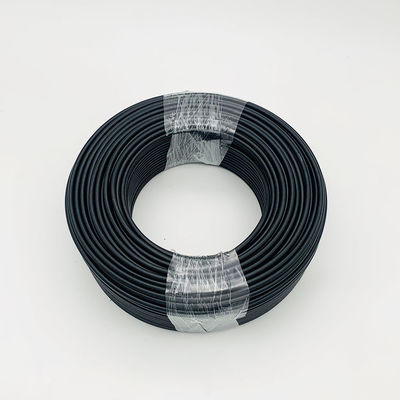

Multiscene PVC Single Core Copper Cable , Antiwear Electrical Wire Single Core

Multiscene PVC Single Core Copper Cable , Antiwear Electrical Wire Single Core
Multiscene PVC Single Core Copper Cable , Antiwear Electrical Wire Single Core Multiscene PVC Single Core Copper Cable , Antiwear Electrical Wire Single Core

Large Image :  Multiscene PVC Single Core Copper Cable , Antiwear Electrical Wire Single Core

Product Details:
Place of Origin: Zhejiang haiyan
Brand Name: HT
Model Number: BV/RV
Payment & Shipping Terms:
Minimum Order Quantity: 2000meter
Price: $0.092per meter
Packaging Details: Cartons and woven bags
Delivery Time: 20~30 work days
Payment Terms: T/T, L/C

Multiscene PVC Single Core Copper Cable , Antiwear Electrical Wire Single Core

Description
Certification: CCC/CE Color: As Your Request
Size: As Your Request Conductor: Copper Core
Insulation: PVC Insulation Cable Material: PVC Copper
Jacket: PVC/PE Application: Electrical Equipment
Conductor Type: Stranded
High Light:

Multiscene Single Core Copper Cable

,

PVC Single Core Copper Cable

,

Antiwear Electrical Wire Single Core

RV0. 75mm ² High quality oxygen free copper multi conductor environment-friendly PVC insulated wire



RV Cable Application:

RV cable is widely used in industrial distribution field. It is especially suitable for flexible installation places with stricter requirements, such as electronic control cabinets, distribution boxes and various low-voltage electrical equipment. It can be used for transmission of power, electrical control signals and switching signals. RV wire and cable are designed with soft structure. The bending radius of conductor is small, and it is suitable for wet and oily installation places.



RV Cable Construction characteristics

Conductor: flexible conductor class 5 (China GB/T 3956 class 5 or

IEC60228 class 5)

Insulation: PVC



Rated voltage and standard:

450/750V 60227 IEC02 or GB/T5023.3-2008

Minimum service temperature: - 30 C

Maximum service temperature available +70 °C, +90 °C, +105 °C

Packaging: 100m/roll or as request





Specification and technical data of 450/750V wire


Cross-sectional area

Number of roots/diameter

Largest diameter

Conductor resistance at 20℃

0.5 1/0.8 2.7 36
0.75 1/0.97 2.8 24.5
1 1/1.13 3 18.1
1.5(A) 1/1.38 3.3 12.1
1.5(B) 7/0.52 3.5 12.1
2.5(A) 1/1.78 3.9 7.41
2.5(B) 7/0.68 4.2 7.41
4.0(A) 1/2.25 4.4 4.61
4.0(B) 7/0.85 4.8 4.61
6.0(A) 1/2.75 4.9 3.08
6.0(B) 7/1.04 5.4 3.08
10 7/1.35 7 1.83
16 7/1.7 8 1.15
25 7/2.14 10 0.727
35 7/2.52 11.5 0.524
50 19/1.78 13 0.387
70 19/2.14 15 0.268
95 19/2.52 17.5 0.193
120 37/2.03 19 0.153
150 37/2.25 21 0.124
185 37/2.52 23.5 0.0991
240 61/2.25 26.5 0.0754
300 61/2.52 29.5 0.0601
400 61/2.85 33 0.047





Multiscene PVC Single Core Copper Cable , Antiwear Electrical Wire Single Core 0Multiscene PVC Single Core Copper Cable , Antiwear Electrical Wire Single Core 1Multiscene PVC Single Core Copper Cable , Antiwear Electrical Wire Single Core 2Multiscene PVC Single Core Copper Cable , Antiwear Electrical Wire Single Core 3Multiscene PVC Single Core Copper Cable , Antiwear Electrical Wire Single Core 4Multiscene PVC Single Core Copper Cable , Antiwear Electrical Wire Single Core 5Multiscene PVC Single Core Copper Cable , Antiwear Electrical Wire Single Core 6Multiscene PVC Single Core Copper Cable , Antiwear Electrical Wire Single Core 7



Company introduction
We are a wire factory located in Zhejiang Haiyan, China.
We have professional, high quality machines and testing equipment. Main business Low voltage power cables, civil wires, audio cables, fire alarm cables,Control cable and other more than 30 series of products. The company's service purpose is Integrity-based, customer satisfaction for the principle. We hope that in the near future To work with you.


FAQ
1. Q: Are you a factory or trading company?
A: We’re a factory locates in Zhejiang Province, which integrates R&D, manufacture and sales of various wires and cables
2. Q: What are your main products?
A: AAC/AAAC/ACSR/ACAR/AACSR/ACSR-AS/ACSS/ACSS-AW/ACS/GSW conductor, ABC cable, power cable, control cable, concentric cable,commonelectric wire, etc
3. Q: Can we have our logo or company name to be printed on your products or the package?
A: Yes, OEM and ODM are both acceptable for us.
4. Q: Do you provide samples? Free or not?
A: Yes, we’d like to provide free samples for your reference, but won’t bear the express fees.
5. Q: How long is your warranty period?
A: 1 year, and we promise to return or replace the cables within one year if any quality problem is found.
