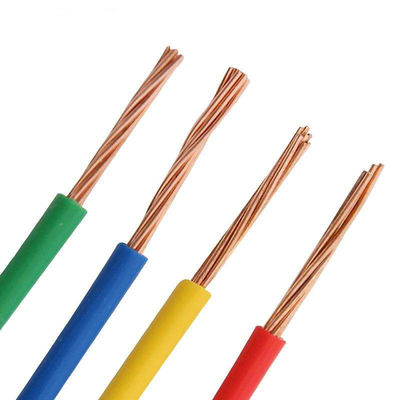

2.5 Sq Mm Moistureproof Single Stranded Wire practical ecofriendly
  • 2.5 Sq Mm Moistureproof Single Stranded Wire practical ecofriendly
  • 2.5 Sq Mm Moistureproof Single Stranded Wire practical ecofriendly
  • 2.5 Sq Mm Moistureproof Single Stranded Wire practical ecofriendly
2.5 Sq Mm Moistureproof Single Stranded Wire practical ecofriendly

2.5 Sq Mm Moistureproof Single Stranded Wire practical ecofriendly

Place of Origin Zhejiang haiyan
Brand Name HT
Certification CE/CCC
Model Number BV/RV
Product Details
Certification:
CCC/CE
Color:
As Your Request
Size:
As Your Request
Conductor:
Copper Core
Insulation:
PVC Insulation Cable
Material:
PVC Copper
Jacket:
PVC/PE
Application:
Electrical Equipment
Conductor Type:
Stranded
High Light:

2.5 Sq Mm Single Stranded Wire

,

Moistureproof Single Stranded Wire

,

Practical 2.5 Sq Mm Single Core Cable

Payment & Shipping Terms
Minimum Order Quantity
2000meter
Price
$0.276per meter
Packaging Details
Cartons and woven bags
Delivery Time
20~30 work days
Payment Terms
T/T, L/C
Product Description

Wiring RV / bv high quality oxygen free copper 2.5mm ² PVC insulated single core wire



Model Number:RVVB, RV, RVVP, RV-90, RVS
Type:Insulated
Application:used in the switch control
Shelf Life:30 years
Color:Red/Yellow/Blue/Green/Black...
Conductor Material:100% oxygen-free Copper
Conductor Type:Solid / Stranded
Insulation Material:PVC
Packaging Details:100 feet in coil or other as customized


RV Building Wire And Cable Descriptions


Ordinary PVC Sheathed cord
Code designation:60227 IEC 53 (International),RVVB 300/500v(China)

RV Building Wire And Cable Constructions

1. Conductor: Flexible copper conductor,comform to IEC 60228 class 5
2. Insulation:PVC/D
3.Sheath:PVC type ST5





Specification and technical data of 450/750V wire

Cross-sectional area
 		 Number of roots/diameter
 		 Largest diameter
 		 Conductor resistance at 20℃

0.5 1/0.8 2.7 36
0.75 1/0.97 2.8 24.5
1 1/1.13 3 18.1
1.5(A) 1/1.38 3.3 12.1
1.5(B) 7/0.52 3.5 12.1
2.5(A) 1/1.78 3.9 7.41
2.5(B) 7/0.68 4.2 7.41
4.0(A) 1/2.25 4.4 4.61
4.0(B) 7/0.85 4.8 4.61
6.0(A) 1/2.75 4.9 3.08
6.0(B) 7/1.04 5.4 3.08
10 7/1.35 7 1.83
16 7/1.7 8 1.15
25 7/2.14 10 0.727
35 7/2.52 11.5 0.524
50 19/1.78 13 0.387
70 19/2.14 15 0.268
95 19/2.52 17.5 0.193
120 37/2.03 19 0.153
150 37/2.25 21 0.124
185 37/2.52 23.5 0.0991
240 61/2.25 26.5 0.0754
300 61/2.52 29.5 0.0601
400 61/2.85 33 0.047





2.5 Sq Mm Moistureproof Single Stranded Wire practical ecofriendly 02.5 Sq Mm Moistureproof Single Stranded Wire practical ecofriendly 12.5 Sq Mm Moistureproof Single Stranded Wire practical ecofriendly 22.5 Sq Mm Moistureproof Single Stranded Wire practical ecofriendly 32.5 Sq Mm Moistureproof Single Stranded Wire practical ecofriendly 42.5 Sq Mm Moistureproof Single Stranded Wire practical ecofriendly 52.5 Sq Mm Moistureproof Single Stranded Wire practical ecofriendly 62.5 Sq Mm Moistureproof Single Stranded Wire practical ecofriendly 7



Company introduction
We are a wire factory located in Zhejiang Haiyan, China.
We have professional, high quality machines and testing equipment. Main business Low voltage power cables, civil wires, audio cables, fire alarm cables,Control cable and other more than 30 series of products. The company's service purpose is Integrity-based, customer satisfaction for the principle. We hope that in the near future To work with you.


FAQ
1. Q: Are you a factory or trading company?
A: We’re a factory locates in Zhejiang Province, which integrates R&D, manufacture and sales of various wires and cables
2. Q: What are your main products?
A: AAC/AAAC/ACSR/ACAR/AACSR/ACSR-AS/ACSS/ACSS-AW/ACS/GSW conductor, ABC cable, power cable, control cable, concentric cable,commonelectric wire, etc
3. Q: Can we have our logo or company name to be printed on your products or the package?
A: Yes, OEM and ODM are both acceptable for us.
4. Q: Do you provide samples? Free or not?
A: Yes, we’d like to provide free samples for your reference, but won’t bear the express fees.
5. Q: How long is your warranty period?
A: 1 year, and we promise to return or replace the cables within one year if any quality problem is found.
