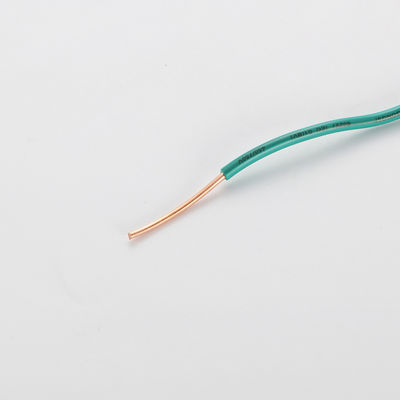

Multipurpose Single Stranded Wire 1.5 Mm Copper Core Anti Insulation

Multipurpose Single Stranded Wire 1.5 Mm Copper Core Anti Insulation
Multipurpose Single Stranded Wire 1.5 Mm Copper Core Anti Insulation Multipurpose Single Stranded Wire 1.5 Mm Copper Core Anti Insulation Multipurpose Single Stranded Wire 1.5 Mm Copper Core Anti Insulation

Large Image :  Multipurpose Single Stranded Wire 1.5 Mm Copper Core Anti Insulation

Product Details:
Place of Origin: Zhejiang haiyan
Brand Name: HT
Model Number: BV/RV
Payment & Shipping Terms:
Minimum Order Quantity: 2000meter
Price: $0.167per meter
Packaging Details: Cartons and woven bags
Delivery Time: 20~30 work days
Payment Terms: T/T, L/C

Multipurpose Single Stranded Wire 1.5 Mm Copper Core Anti Insulation

Description
Certification: CCC/CE Color: As Your Request
Size: As Your Request Conductor: Copper Core
Insulation: PVC Insulation Cable Material: PVC Copper
Jacket: PVC/PE Application: Electrical Equipment
Conductor Type: Stranded
High Light:

Multipurpose Single Stranded Wire

,

1.5mm Single Stranded Wire

,

Anti Insulation Single Core 1.5 Mm Cable

Household pure copper core single core 1.5mm ² High quality PVC insulated wire and cable



Application:

Mainly used in power lines, control lines and signal transmission lines for electrical appliances, instrumentation, electronic equipment and automation devices, specifically used in anti-theft alarm systems, building intercom systems, etc.



Construction

Conductor: flexible conductor class5 (GB/T 3956 class 5 or IEC60228.5)

Core number: 2core to 41core

Insulation: compound PVC

Outer sheath:compound PVC

Rated voltage

300/500V (GB/T5023.3-2008 or 60227 IEC52)

Service temperature: -30~ +70℃

Bending radius: 15D

Packaging: 100m/roll or as request





Specification and technical data of 450/750V wire


Cross-sectional area

Number of roots/diameter

Largest diameter

Conductor resistance at 20℃

0.5 1/0.8 2.7 36
0.75 1/0.97 2.8 24.5
1 1/1.13 3 18.1
1.5(A) 1/1.38 3.3 12.1
1.5(B) 7/0.52 3.5 12.1
2.5(A) 1/1.78 3.9 7.41
2.5(B) 7/0.68 4.2 7.41
4.0(A) 1/2.25 4.4 4.61
4.0(B) 7/0.85 4.8 4.61
6.0(A) 1/2.75 4.9 3.08
6.0(B) 7/1.04 5.4 3.08
10 7/1.35 7 1.83
16 7/1.7 8 1.15
25 7/2.14 10 0.727
35 7/2.52 11.5 0.524
50 19/1.78 13 0.387
70 19/2.14 15 0.268
95 19/2.52 17.5 0.193
120 37/2.03 19 0.153
150 37/2.25 21 0.124
185 37/2.52 23.5 0.0991
240 61/2.25 26.5 0.0754
300 61/2.52 29.5 0.0601
400 61/2.85 33 0.047





Multipurpose Single Stranded Wire 1.5 Mm Copper Core Anti Insulation 0Multipurpose Single Stranded Wire 1.5 Mm Copper Core Anti Insulation 1Multipurpose Single Stranded Wire 1.5 Mm Copper Core Anti Insulation 2Multipurpose Single Stranded Wire 1.5 Mm Copper Core Anti Insulation 3Multipurpose Single Stranded Wire 1.5 Mm Copper Core Anti Insulation 4Multipurpose Single Stranded Wire 1.5 Mm Copper Core Anti Insulation 5Multipurpose Single Stranded Wire 1.5 Mm Copper Core Anti Insulation 6Multipurpose Single Stranded Wire 1.5 Mm Copper Core Anti Insulation 7



Company introduction
We are a wire factory located in Zhejiang Haiyan, China.
We have professional, high quality machines and testing equipment. Main business Low voltage power cables, civil wires, audio cables, fire alarm cables,Control cable and other more than 30 series of products. The company's service purpose is Integrity-based, customer satisfaction for the principle. We hope that in the near future To work with you.


FAQ
1. Q: Are you a factory or trading company?
A: We’re a factory locates in Zhejiang Province, which integrates R&D, manufacture and sales of various wires and cables
2. Q: What are your main products?
A: AAC/AAAC/ACSR/ACAR/AACSR/ACSR-AS/ACSS/ACSS-AW/ACS/GSW conductor, ABC cable, power cable, control cable, concentric cable,commonelectric wire, etc
3. Q: Can we have our logo or company name to be printed on your products or the package?
A: Yes, OEM and ODM are both acceptable for us.
4. Q: Do you provide samples? Free or not?
A: Yes, we’d like to provide free samples for your reference, but won’t bear the express fees.
5. Q: How long is your warranty period?
A: 1 year, and we promise to return or replace the cables within one year if any quality problem is found.
