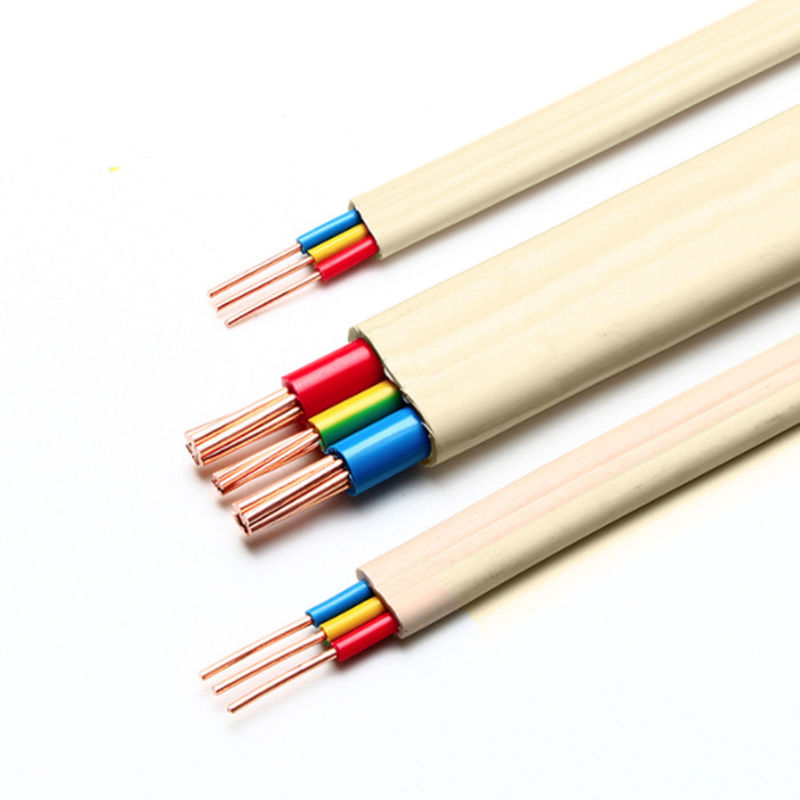

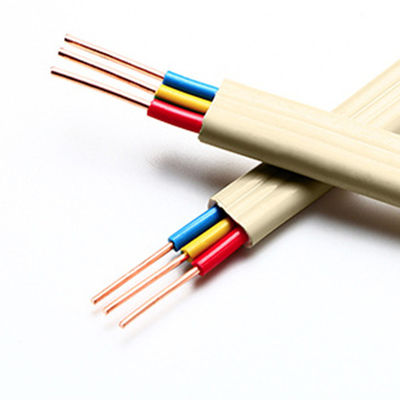

300V/500V Flat Wire Electrical Cable Mildewproof Anti Insulation
  • 300V/500V Flat Wire Electrical Cable Mildewproof Anti Insulation
  • 300V/500V Flat Wire Electrical Cable Mildewproof Anti Insulation

300V/500V Flat Wire Electrical Cable Mildewproof Anti Insulation

Place of Origin Zhejiang haiyan
Brand Name HT
Certification CE/CCC
Model Number BVVB
Product Details
Color:
As Your Request
Conductor:
Copper Core
Insulation:
PVC Insulation Cable
Certification:
CCC/CE
Material:
PVC Copper
Size:
As Your Request
Jacket:
PVC/PE
Application:
Electrical Equipment
Conductor Type:
Stranded
High Light:

300V Flat Wire Electrical Cable

,

500V Flat Wire Electrical Cable

,

mildewproof Flat Wire Cable

Payment & Shipping Terms
Minimum Order Quantity
2000meter
Price
Consult customer service
Packaging Details
Cartons and woven bags
Delivery Time
20~30 work days
Payment Terms
T/T, L/C
Product Description

Environmental protection pvcbvvb 2 * 1 / 1.5 / 2.5 copper core flat sheathed wire and cable



Application :
Suitable for surface wiring indoor or outdoor.

Construction:
Core number: 2core, 3core

Conductor: Solid or Stranded Annealed copper/ aluminum

Insulation: PVC insulation
Outer sheath: PVC sheath.

Rated voltage: 300/500V

Test voltage: 2000V

Physical characteristics

Max working temperature: 70°C

Mounting temperature: 0°C-+40°C



Minimum bending radius:

For cable with diameter below 25mm, allowed bending

radius should not be less than 4D;

For cable with diameter above and including 25mm,

allowed bending radius should not be less than 6D;

Standard: IEC227-4 or JB/T8734.2-2016

Packing: 100m per roll (per coil or plastic reel, as your request



Specification and technical data of 300/500V wire

Cross-sectional area Number of roots/diameter Largest diameter Conductor resistance at 20℃
2*0.75 2*1/0.97 4.6*7 24.5
2*1.0 2*1/1.13 4.8*7.4 18.1
2*1.5 2*1/1.38 5.4*8.4 12.1
2*2.5 2*1/1.78 6.2*9.8 7.41
2*4.0 2*7/0.85 7.2*11.5 4.61
2*6.0 2*7/1.04 8*13 3.08
2*10 2*7/1.35 9.6*16 1.83
3*0.75 3*1/0.97 4.6*9.4 24.5
3*1.0 3*1/1.13 4.8*9.8 18.1
3*1.5 3*1/1.38 5.4*11.5 12.1
3*2.5 3*1/1.78 6.2*13.5 7.41
3*4.0 3*7/0.85 7.4*16.5 4.61
3*6.0 3*7/1.04 8*18 3.08
3*10 3*7/1.35 9.6*22.5 1.83

300V/500V Flat Wire Electrical Cable Mildewproof Anti Insulation 0300V/500V Flat Wire Electrical Cable Mildewproof Anti Insulation 1300V/500V Flat Wire Electrical Cable Mildewproof Anti Insulation 2300V/500V Flat Wire Electrical Cable Mildewproof Anti Insulation 3300V/500V Flat Wire Electrical Cable Mildewproof Anti Insulation 4300V/500V Flat Wire Electrical Cable Mildewproof Anti Insulation 5



Company introduction

We are a wire factory located in Zhejiang Haiyan, China.
We have professional, high quality machines and testing equipment. Main business Low voltage power cables, civil wires, audio cables, fire alarm cables,Control cable and other more than 30 series of products. The company's service purpose is Integrity-based, customer satisfaction for the principle. We hope that in the near future To work with you.



FAQ
1. Q: Are you a factory or trading company?
A: We’re a factory locates in Zhejiang Province, which integrates R&D, manufacture and sales of various wires and cables

2. Q: What are your main products?
A: AAC/AAAC/ACSR/ACAR/AACSR/ACSR-AS/ACSS/ACSS-AW/ACS/GSW conductor, ABC cable, power cable, control cable, concentric cable,commonelectric wire, etc

3. Q: Can we have our logo or company name to be printed on your products or the package?
A: Yes, OEM and ODM are both acceptable for us.

4. Q: Do you provide samples? Free or not?
A: Yes, we’d like to provide free samples for your reference, but won’t bear the express fees.

5. Q: How long is your warranty period?
A: 1 year, and we promise to return or replace the cables within one year if any quality problem is found.
